ARV FEATURES AND BENEFITS
Reliable, long Term Operation：
★ ARV-C series features and benefits
★ Adopting special anti-corrosive technology to resist corrosive gas
★ Adopting FKM materials, stainless steel parts which are anti-corrosive
★ Running Available On 7x24 Hours 365 Days.
★ Two Position Gas Ballast Valve For Pumping Water Vapor.
★ Oil-back-flow Prevention Mechanism To Ensure Pure Vacuum.
★ Easy Maintenance And Overhaul With Integrated Cylinder Structure.
Products Detail
| Model | ARV-8C | |
| Production | Chemical Duty Vacuum Pump | |
| Flow Rate m³/h(L/s) | 50Hz | 8(2.2) |
| 60Hz | 9.6(2.7) | |
| Ultimate partial pressure gas ballast close(Pa) | 4X10-2 | |
| Ultimate pressure when gas ballast open to I(Pa) | 4X10-1 | |
| Ultimate pressure when gas ballast open to II(Pa) | 10 | |
| Power supply | single/3-phase | |
| Rated Power(kW) | 0.75/0.55 | |
| Inlet and Exhaust port | KF25 | |
| Exhaust flange | KF25 | |
| Oil capacity(L) | min 0.6-max 1 | |
| Motor Speed（rpm） | 50Hz | 1440 |
| 60Hz | 1720 | |
| Operation Temp(℃) | 5-40 | |
| Noise Level（db） | ≤56 | |
| Weight（kgs） | 25 | |

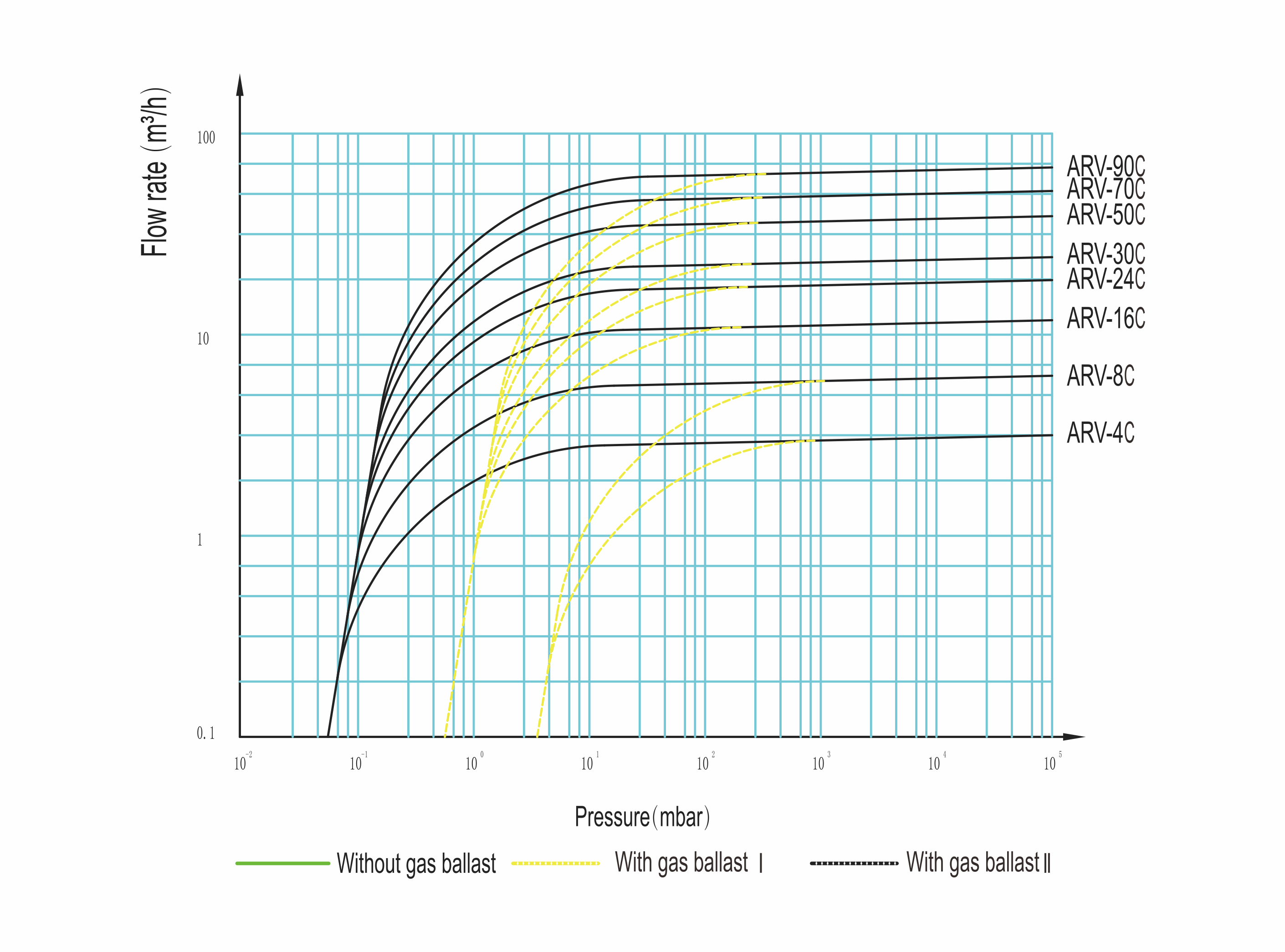

Flow rate characteristic

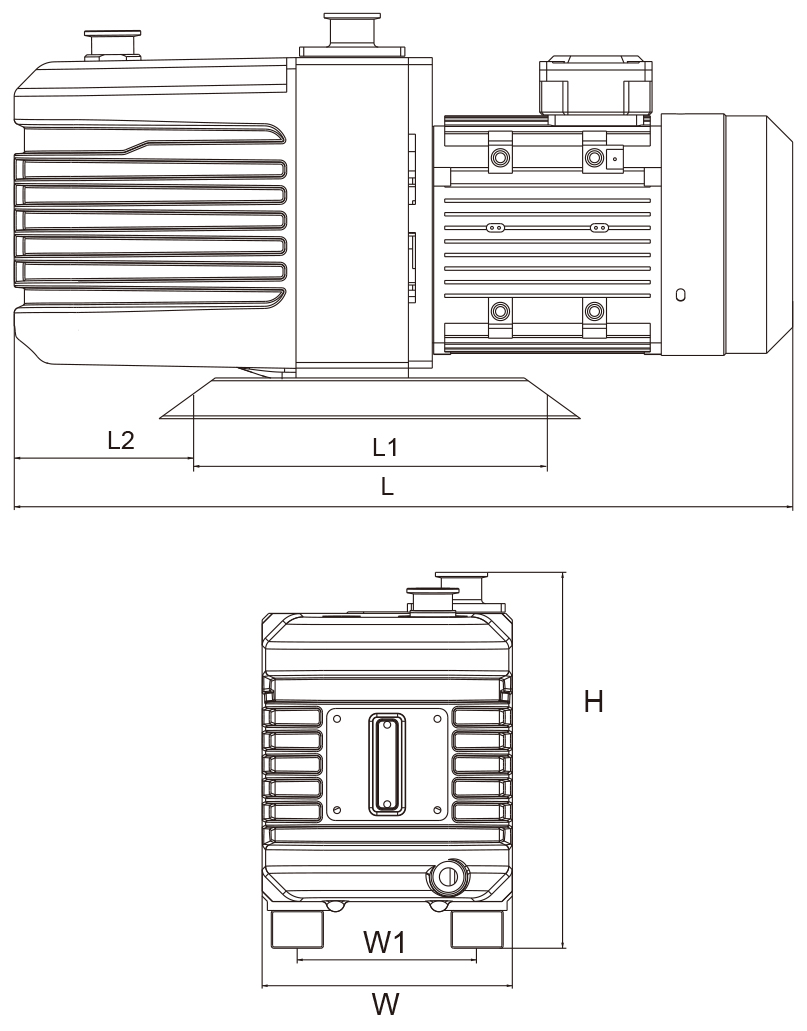

Dimension(mm):
| MODEL | L | W | H | L1 | L2 | W1 | H1 |
| ARV-4C | 460 | 145 | 220 | 207 | 94 | 121 | 258 |
| ARV-8C | 460 | 145 | 220 | 207 | 94 | 121 | 258 |
Send Message
Related Products
Model NO. ARV-4C
Model NO. ARV-16C
Model NO. ARV-30C
Model NO. ARV-50C

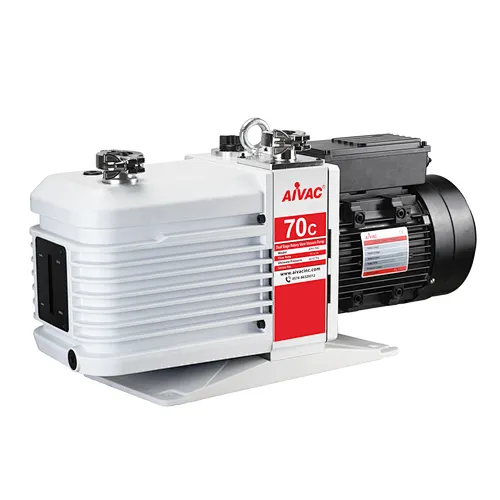

Model NO. ARV-70C
