ARV FEATURES AND BENEFITS
Reliable, long term operation: running available on 7x24 hours 365days
Two-position gas ballast valve for pumping water vapour
Oil-back-flow prevention mechanism to ensure pure vacuum
Easy maintenance and overhaul with an integrated cylinder structure
Products Detail

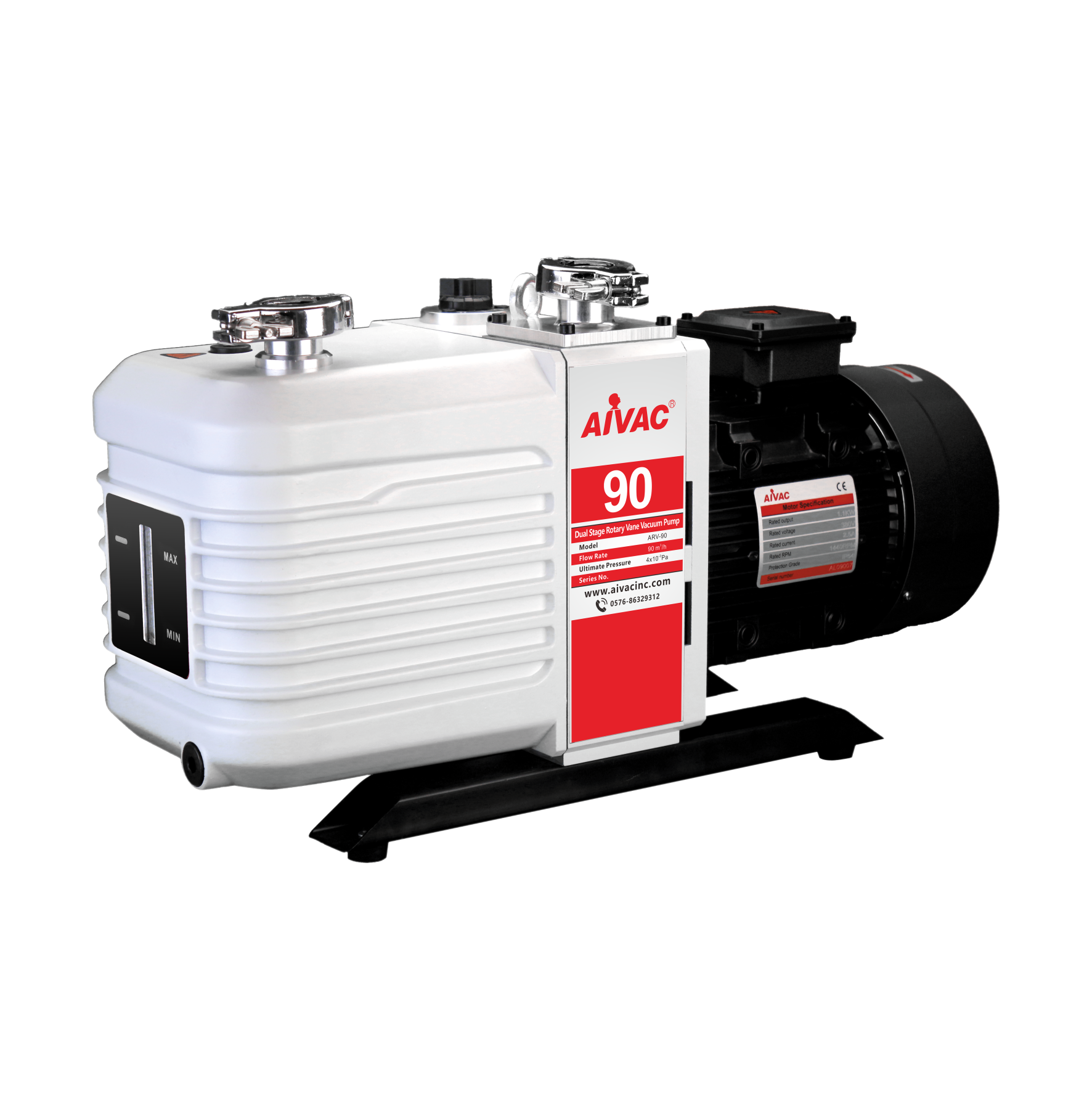

| Model | ARV-90 | |
| Production | Rotary Vane Vacuum Pump | |
| Flow Ratem³/h(L/S) | 50Hz | 90(25) |
| 60Hz | 108(30) | |
| Ultimate Partial Pressure Gas Ballast Close（Pa） | 4X10-2 | |
| Ultimate pressure when gas ballast open to I（Pa） | 4X10-1 | |
| Ultimate pressure when gas ballast open to II（Pa） | 8x10-1 | |
| Power Supply | 3-phase | |
| Rated Power | 3 | |
| Inlet and Exhaust Port | KF40 | |
| Oil Capacity | KF40 | |
| Motor Speed(RPM) | 50Hz | min 3-max 4.5 |
| 60Hz | 1440 | |
| Operation Temp. | 1720 | |
| Noise Level (dB) | 5-40 | |
| Dimensions | ≤65 | |
| Weight (kg) | 70 | |

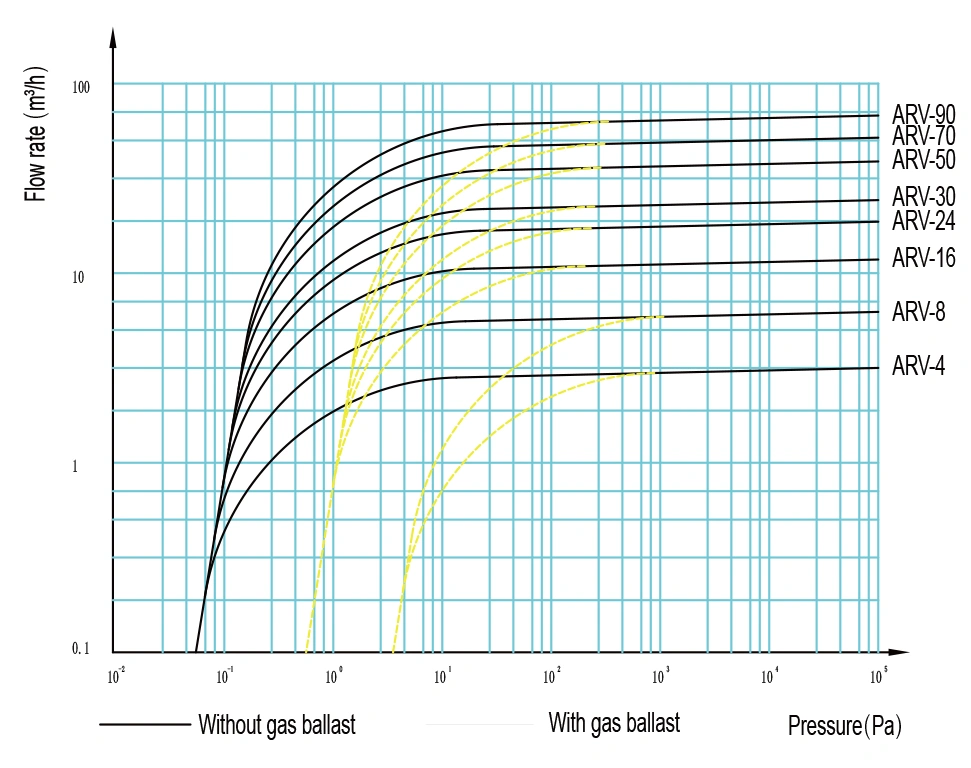

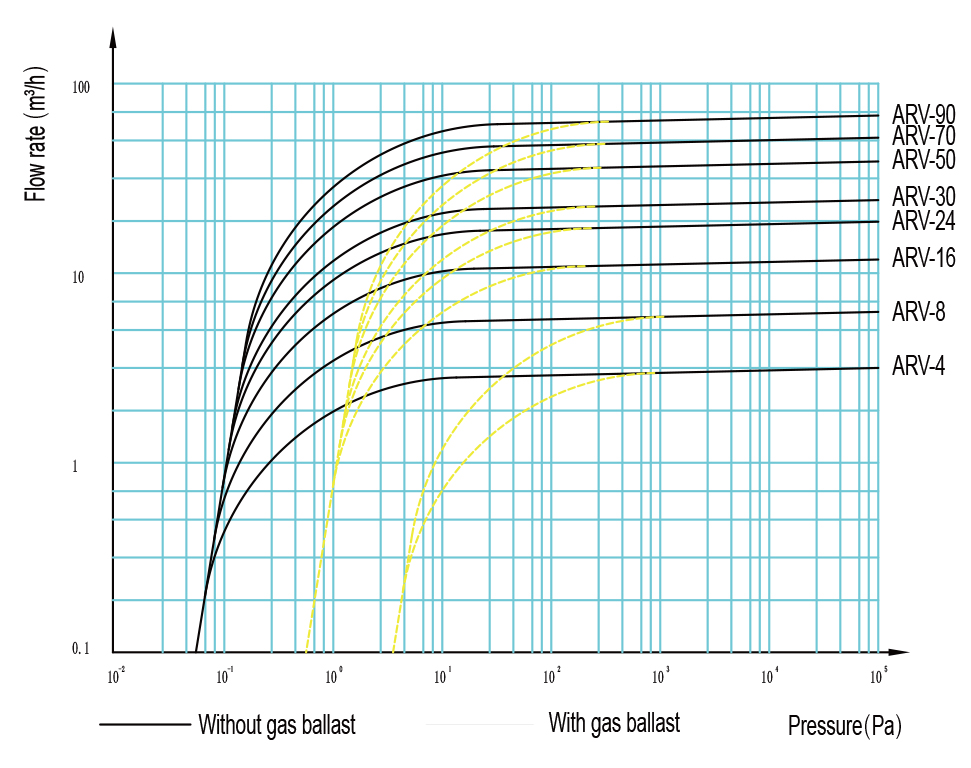

Flow rate characteristic

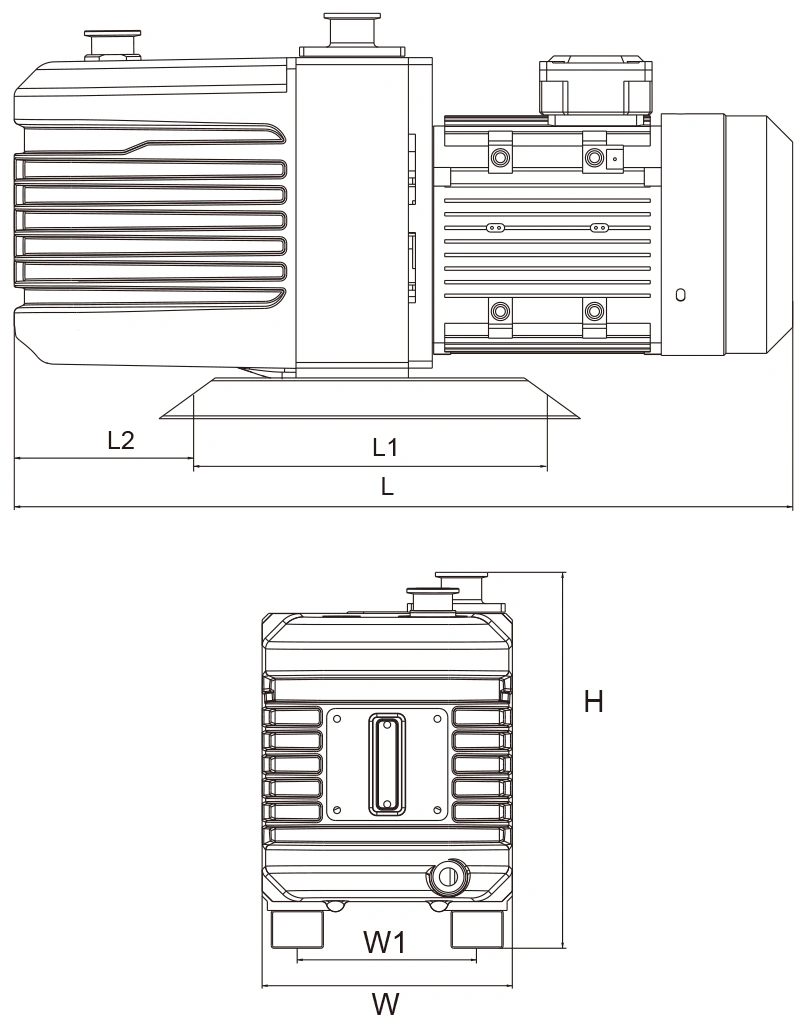

| MODEL | L | W | H | L1 | L2 | W1 |
| ARV-50 | 700 | 260 | 460 | 400 | 120 | 190 |
| ARV-70 | 700 | 260 | 460 | 400 | 120 | 190 |
| ARV-90 | 700 | 260 | 460 | 400 | 120 | 190 |
Send Message
Related Products

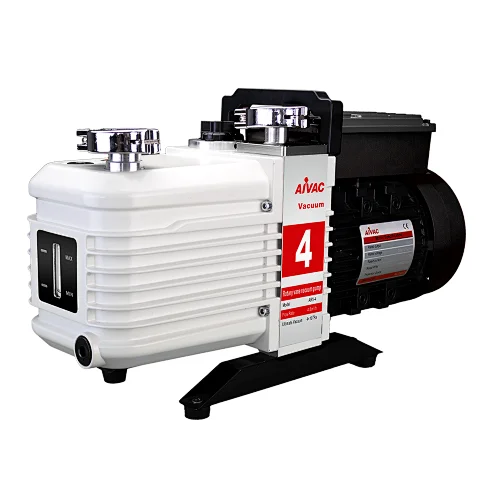

Model NO. ARV-4

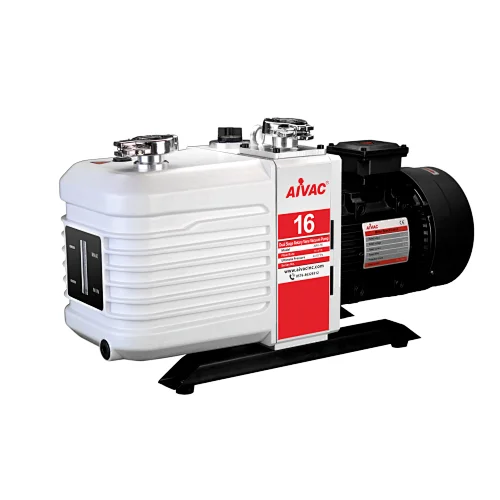

Model NO. ARV-16
