DC motor noise level≤52dB
ARV-D FEATURES AND BENEFITS
Super quiet with DC motor
Low power consumption
Compact installation space
Oil-back-flow prevention mechanism
Products Detail
| Model | ARV-6D | |
| Production | DC Vacuum Pump | |
| Flow Ratem³/h(L/s) | 50Hz/60Hz | 6(1.6) |
| Ultimate partial pressure gas ballast close(Pa) | 5x10-2 | |
| Ultimate pressure when gas ballast open to I(Pa) | 5x10-1 | |
| Ultimate pressure when gas ballast open to II(Pa) | 10 | |
| Power supply | single phase | |
| Rated Power(kw) | 0.37 | |
| Inlet Flange | KF25 | |
| Exhaust Flange | KF25 | |
| Oil capacity(L) | min 0.6-max 1 | |
| Operation Temp(℃) | 5-40 | |
| Noise Level（db） | ≤50 | |
| Weight（kgs） | 15 | |

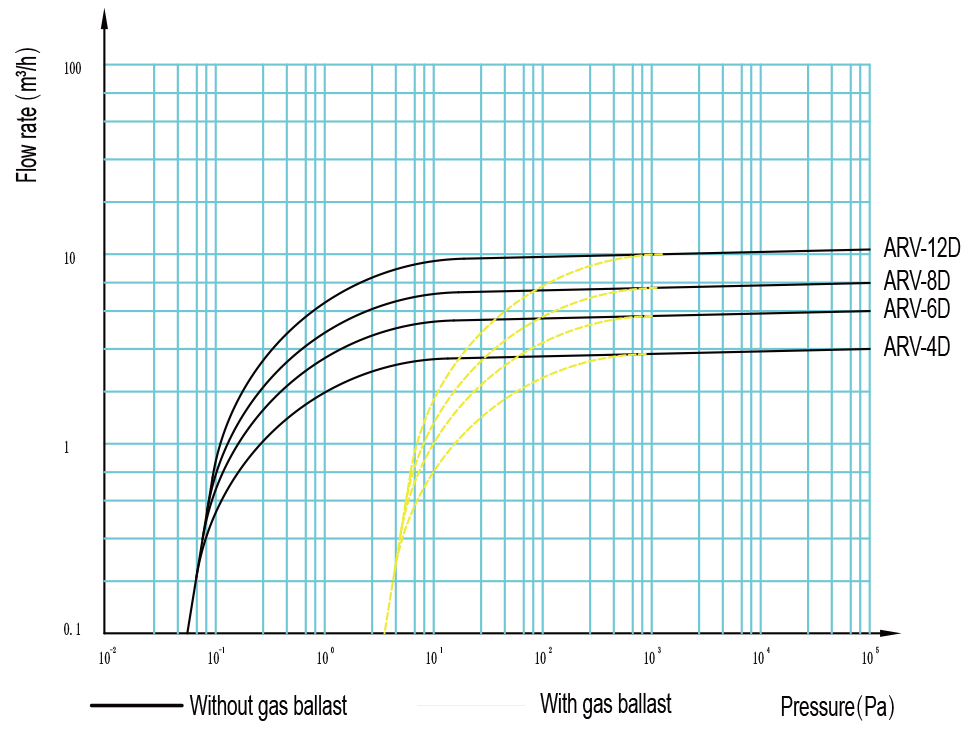

Flow rate characteristic

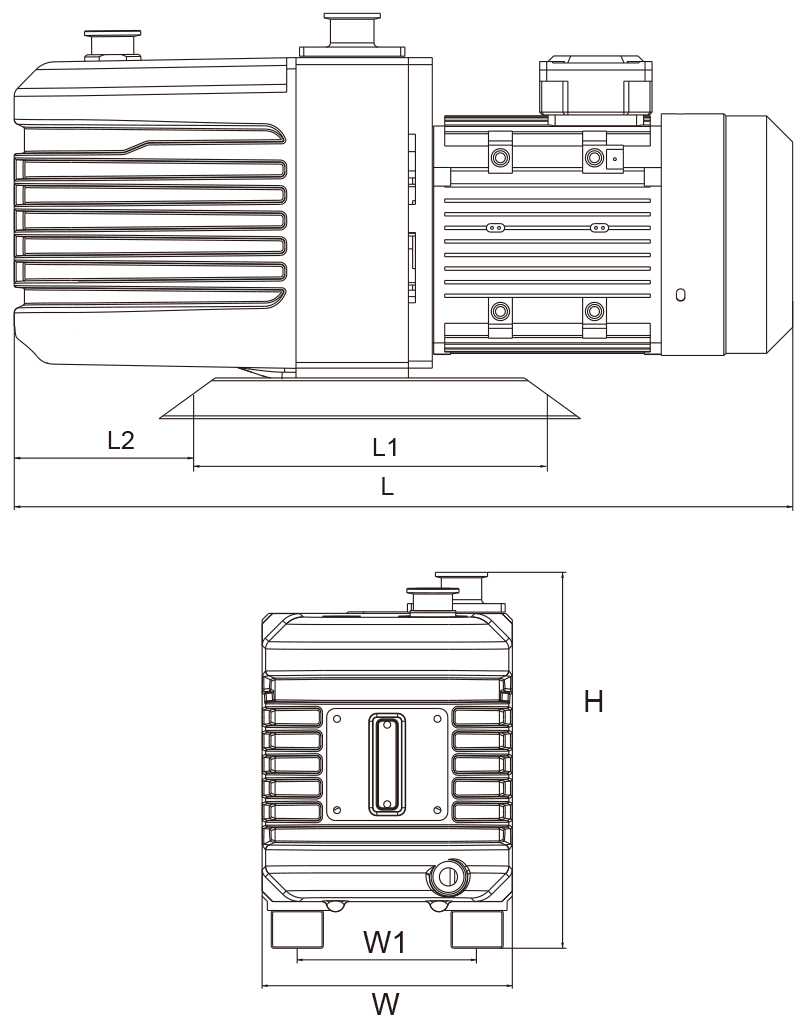

| MODEL | L | W | H | L1 | L2 | W1 | H1 |
| ARV-4D | 407 | 145 | 235 | 207 | 94 | 121 | 258 |
| ARV-6D | 407 | 145 | 235 | 207 | 94 | 121 | 258 |
| ARV-8D | 407 | 145 | 235 | 207 | 94 | 121 | 258 |
| ARV-12D | 407 | 145 | 235 | 207 | 94 | 121 | 258 |
