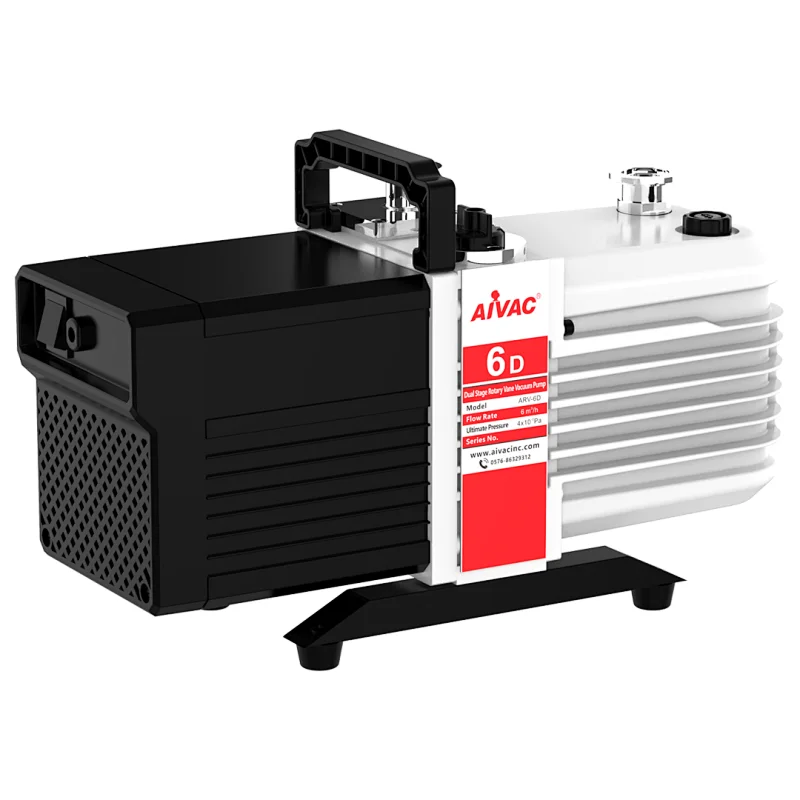

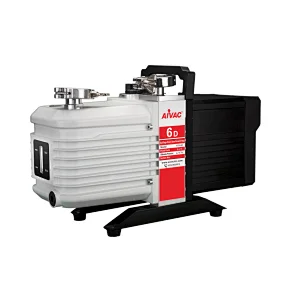

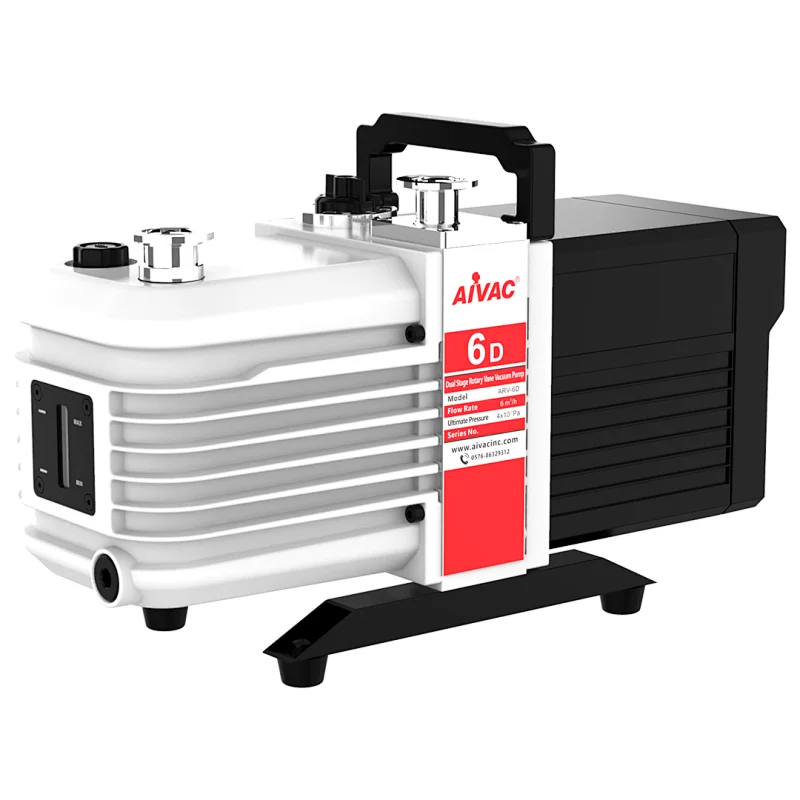

Low Noise DC Brushless Motor Vacuum Pump

Model NO.
ARV-6D
Delivery:
FOB
Quantity:

DC motor noise level≤52dB

ARV-D FEATURES AND BENEFITS


Super quiet with DC motor

Low power consumption

Compact installation space

Oil-back-flow prevention mechanism




Products Detail

ModelARV-6D
ProductionDC Vacuum Pump
Flow Ratem³/h(L/s)50Hz/60Hz6(1.6)
Ultimate partial pressure gas ballast close(Pa)5x10-2
Ultimate pressure when gas ballast open to I(Pa)5x10-1
Ultimate pressure when gas ballast open to II(Pa)10
Power supplysingle phase
Rated Power(kw)0.37
Inlet FlangeKF25
Exhaust FlangeKF25
Oil capacity(L)min 0.6-max 1
Operation Temp(℃)5-40
Noise Level(db)≤50
Weight(kgs)15


Flow rate characteristic

Flow rate characteristic of this DC Vacuum Pump

Dimension
Dimension of the DC Vacuum Pump

Dimension(mm):

MODELLWHL1L2W1H1
ARV-4D40714523520794121258
ARV-6D40714523520794121258
ARV-8D40714523520794121258
ARV-12D40714523520794121258
