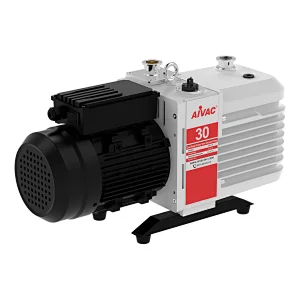

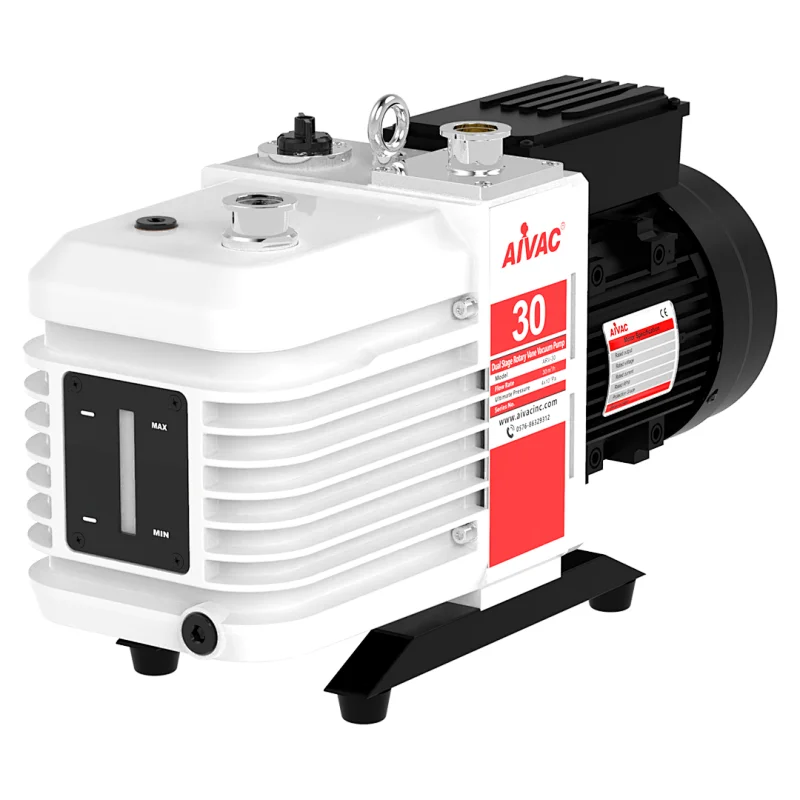

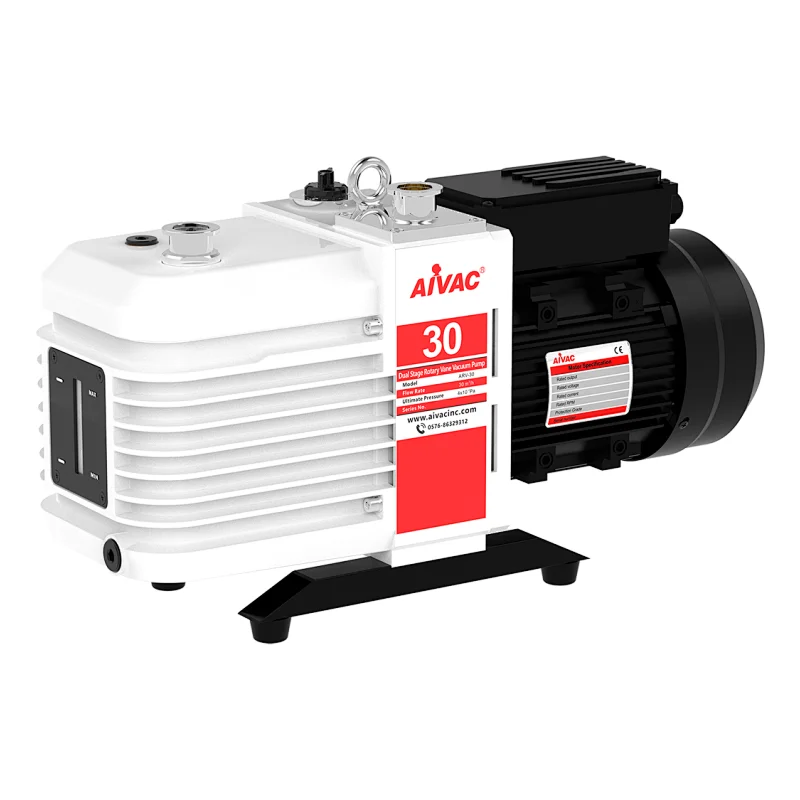

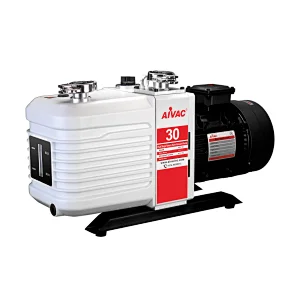

Two-Stage Vacuum Pump for Freeze Drying

Model NO.
ARV-30
Delivery:
FOB
Quantity:

ARV FEATURES AND BENEFITS


Reliable, long term operation: running available on 7x24 hours 365days

Two-position gas ballast valve for pumping water vapour

Oil-back-flow prevention mechanism to ensure pure vacuum

Easy maintenance and overhaul with an integrated cylinder structure




Products Detail


ModelARV-30
ProductionTwo Stage Vacuum Pump
for Freeze Drying
Flow Rate m³/h(L/s)50Hz30(8.3)
60Hz36(10)
Ultimate partial pressure gas ballast close(Pa)4X10-2
Ultimate pressure when gas ballast open to I(Pa)4X10-1
Ultimate pressure when gas ballast open to II(Pa)8x10-1
Power supplysingle/3-phase
Rated Power(kW)1.1
Inlet and Exhaust portKF25 or KF40
Exhaust flangeKF25 or KF40
Oil capacity(L)min 1.2-max 2
Motor Speed(rpm)50Hz1440
60Hz1720
Operation Temp(℃)5-40
Noise Level(db)≤60
Weight(kgs)38

Flow rate characteristic
Flow rate characteristic of two stage vacuum pump

Dimension
Dimension of two stage vacuum pump

Dimension(mm):

MODELLWHL1L2W1
ARV-1656019232024088138
ARV-2456019232024088138
ARV-3056019232024088138
