ARV-C FEATURES AND BENEFITS
ARV-D Features And Benefits：
★ ARV-C series features and benefits
★ Adopting special anti-corrosive technology to resist corrosive gas
★ Adopting FKM materials, stainless steel parts which are anti-corrosive
★ Super Quiet With Dc Motor
★ Low Power Consumption
★ Compact Installation Space
★ Oil-back-flow Prevention Mechanism
Products Detail

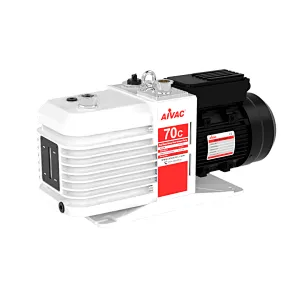

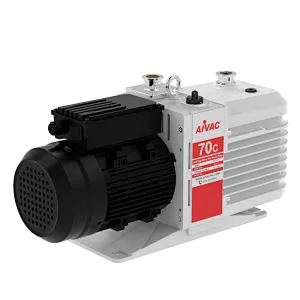

| Model | ARV-70C | |
| Production | Chemical Duty Vacuum Pump | |
| Flow Rate m³/h(L/s) | 50Hz | 70(19.4) |
| 60Hz | 84(23.3) | |
| Ultimate partial pressure gas ballast close(Pa) | 4X10-2 | |
| Ultimate pressure when gas ballast open to I(Pa) | 4X10-1 | |
| Ultimate pressure when gas ballast open to II(Pa) | 8x10-1 | |
| Power supply | 3-phase | |
| Rated Power(kw) | 2.2 | |
| Inlet and Exhaust port | KF40 | |
| Exhaust flange | KF40 | |
| Oil capacity(L) | min 3-max 4.5 | |
| Motor Speed（rpm） | 50Hz | 1440 |
| 60Hz | 1720 | |
| Operation Temp(℃) | 5-40 | |
| Noise Level（db） | ≤62 | |
| Weight（kgs） | 65 | |
Flow rate characteristic
| MODEL | L | W | H | L1 | L2 | W1 |
| ARV-50C | 700 | 260 | 460 | 400 | 120 | 190 |
| ARV-70C | 700 | 260 | 460 | 400 | 120 | 190 |
Send Message
Related Products

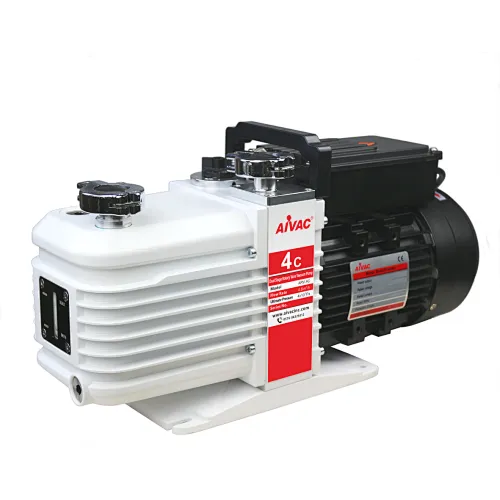

Model NO. ARV-4C
Model NO. ARV-16C

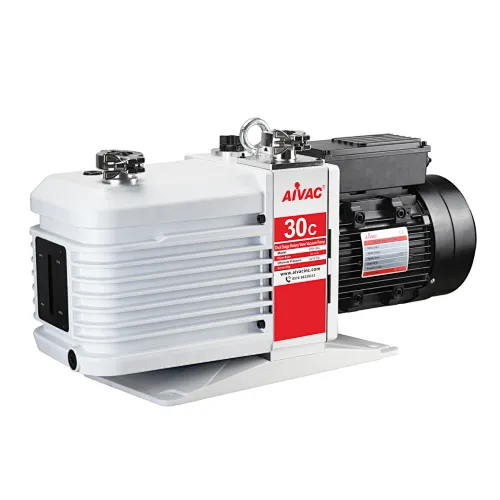

Model NO. ARV-30C
