ARV FEATURES AND BENEFITS
Reliable, long term operation: running available on 7x24 hours 365days
Two-position gas ballast valve for pumping water vapour
Oil-back-flow prevention mechanism to ensure pure vacuum
Easy maintenance and overhaul with an integrated cylinder structure
Products Detail
| Model | ARV-30 | |
| Production | Two Stage Vacuum Pump for Freeze Drying | |
| Flow Rate m³/h(L/s) | 50Hz | 30(8.3) |
| 60Hz | 36(10) | |
| Ultimate partial pressure gas ballast close(Pa) | 4X10-2 | |
| Ultimate pressure when gas ballast open to I(Pa) | 4X10-1 | |
| Ultimate pressure when gas ballast open to II(Pa) | 8x10-1 | |
| Power supply | single/3-phase | |
| Rated Power(kW) | 1.1 | |
| Inlet and Exhaust port | KF25 or KF40 | |
| Exhaust flange | KF25 or KF40 | |
| Oil capacity(L) | min 1.2-max 2 | |
| Motor Speed（rpm） | 50Hz | 1440 |
| 60Hz | 1720 | |
| Operation Temp(℃) | 5-40 | |
| Noise Level（db） | ≤60 | |
| Weight（kgs） | 38 | |

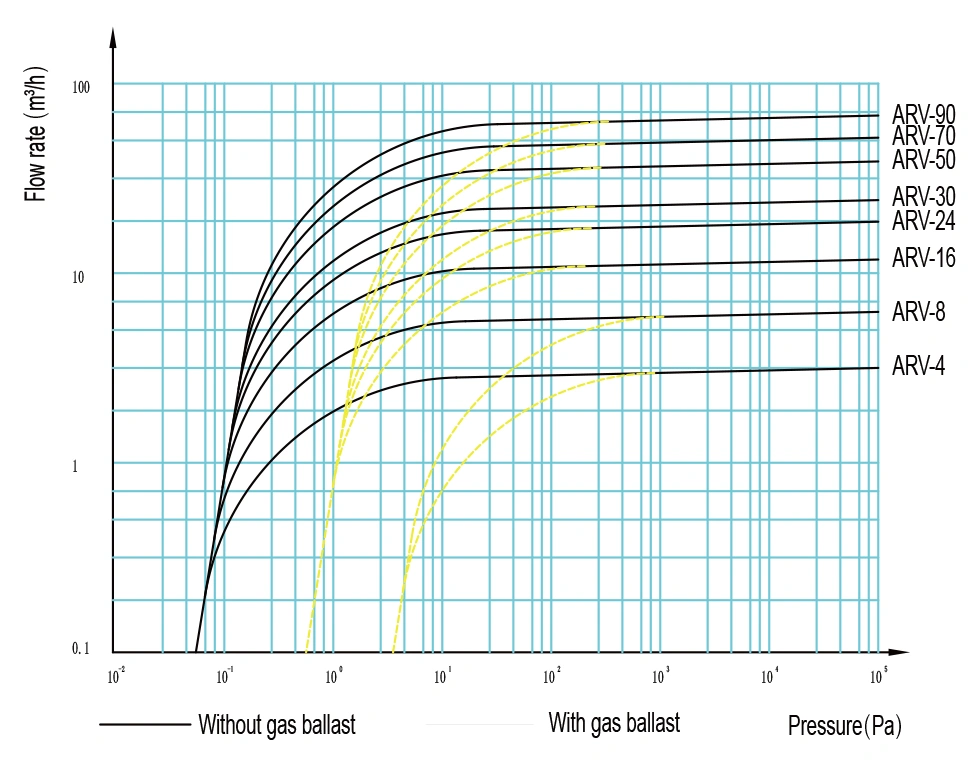

Flow rate characteristic

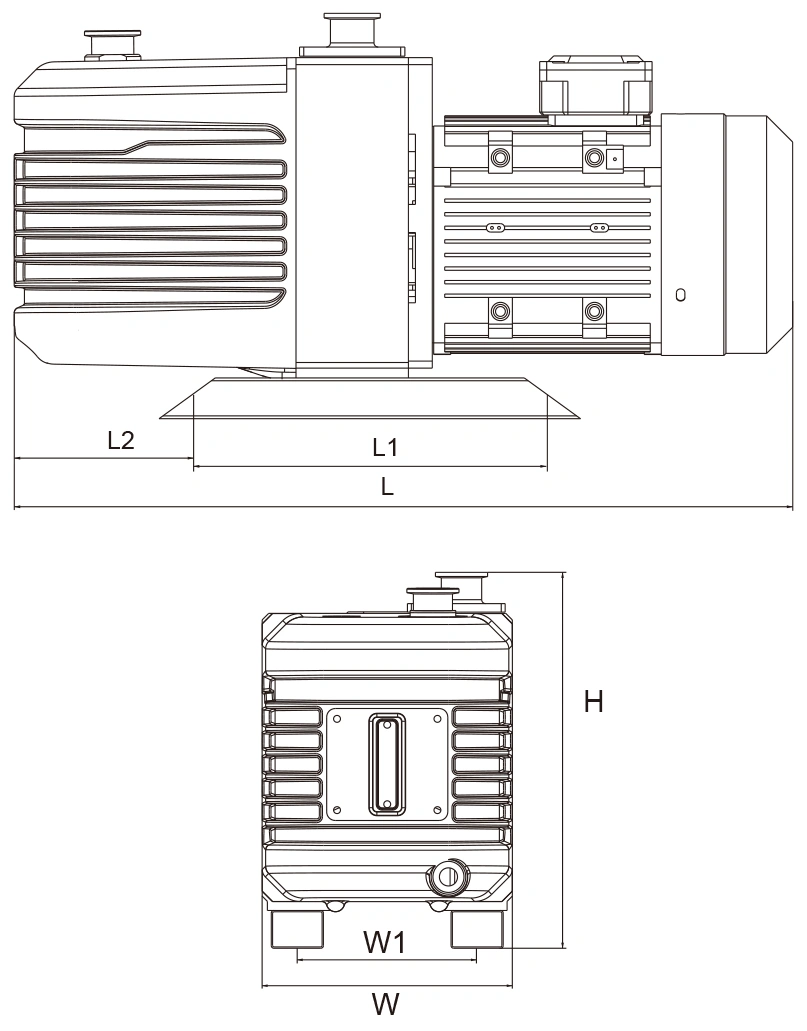

Dimension
Dimension(mm):
| MODEL | L | W | H | L1 | L2 | W1 |
| ARV-16 | 560 | 192 | 320 | 240 | 88 | 138 |
| ARV-24 | 560 | 192 | 320 | 240 | 88 | 138 |
| ARV-30 | 560 | 192 | 320 | 240 | 88 | 138 |
